MistySOM means support in building a low power computer vision device.

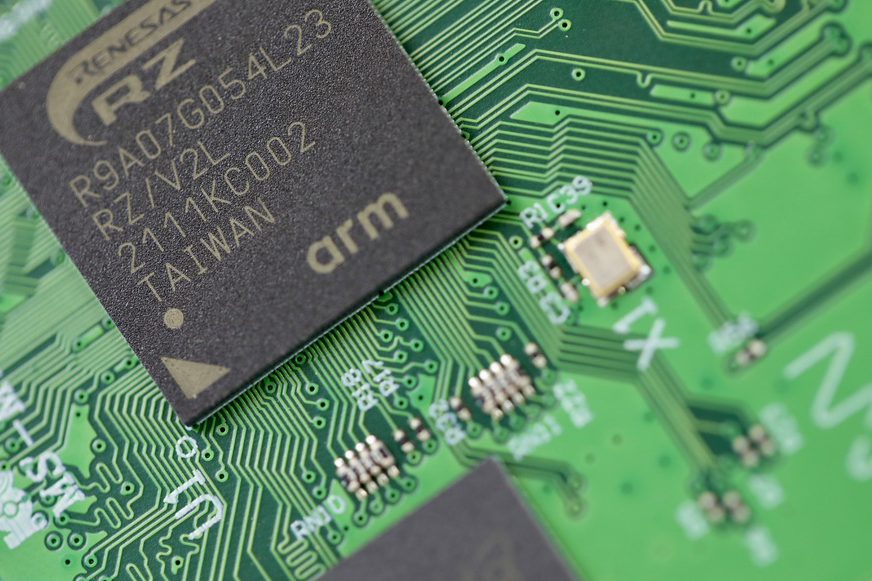

Built around the Renesas RZ/V2L microprocessor equipped with built-in AI accelerator, MistySOM-V2L is optimized for battery powered IoT device applications and ruggedized for industrial temperatures.
MistySOM-V2L
MW-V2L-E32G-D2G-I-WX-V0
A power-efficient computer vision SOM built around the pin-compatible RZ/V2L MPU, including all the features of the RZ/G2L with the addition of an NPU.
Well suited for low power object detection, classification and localization, it enables Jetson Nano-like performance for embedded video applications while using 50% less power.
MISTYSOM-V2L SPECIFICATIONS
COMPUTER
- 2 x Arm Cortex-A55 (1.2GHz)
- 1 x Arm Cortex-M33
- Arm Mali-G31 GPU
- DRP-AI NPU (2W @ 2TOPS)
MEMORY
- 32GB Default eMMC
- 2GB Default RAM
KEY CONNECTIONS
- 2 x Gigabit Ethernet
- 4 MIPI DSI
- 4 MIPI CSI
COMPUTER
- 2 x Arm Cortex-A55 (1.2GHz)
- 1 x Arm Cortex-M33
- Arm Mali-G31 GPU
- DRP-AI NPU (2W @ 0.5TOPS)
MEMORY
- 32GB Default eMMC
- 2GB Default RAM
KEY CONNECTIONS
- 2 x Gigabit Ethernet
- 4 MIPI DSI
- 4 MIPI CSI
EXAMPLE APPLICATIONS OF MISTYSOM-V2L
LIGHT DIMMING & SMART HOME
DISTRACTED OPERATOR DETECTION
HOME & WORK SITE SAFETY MONITORING
VEHICLE TRACKING & DETECTION
Elevate your product with MistyWest for power-efficient embedded computing.
MistyWest is a hardware development consultancy who brings deep expertise in implementing solutions from the edge to the cloud, and empowers customers to seamlessly transition their connected devices from the lab to the field.
Buying your SOMs from an experienced design services firm like MistyWest means:
BUYING YOUR SOMS FROM MISTYWEST MEANS:
- Hardware flexibility
- Greater resilience against supply chain disruptions
- Shorter lead times
- A strategic transition to a chip-level design
- One-off customizations
- An efficient and streamlined path from prototyping all the way to mass production
MORE MISTYSOM PRODUCTS
MistySOM-G2L
MW-G2L-E32G-D2G-I-WX-V0
A general purpose SOM built around the RZ/G2L MPU, ideal for use in industrial and commercial computing applications where low power, reliability, and costs are critical.
Images and video can be captured through the 4 lane MIPI-CSI interface and with the onboard codec efficiently h.264 encoded. The G2L also supports dual ethernet and CANBus interface.

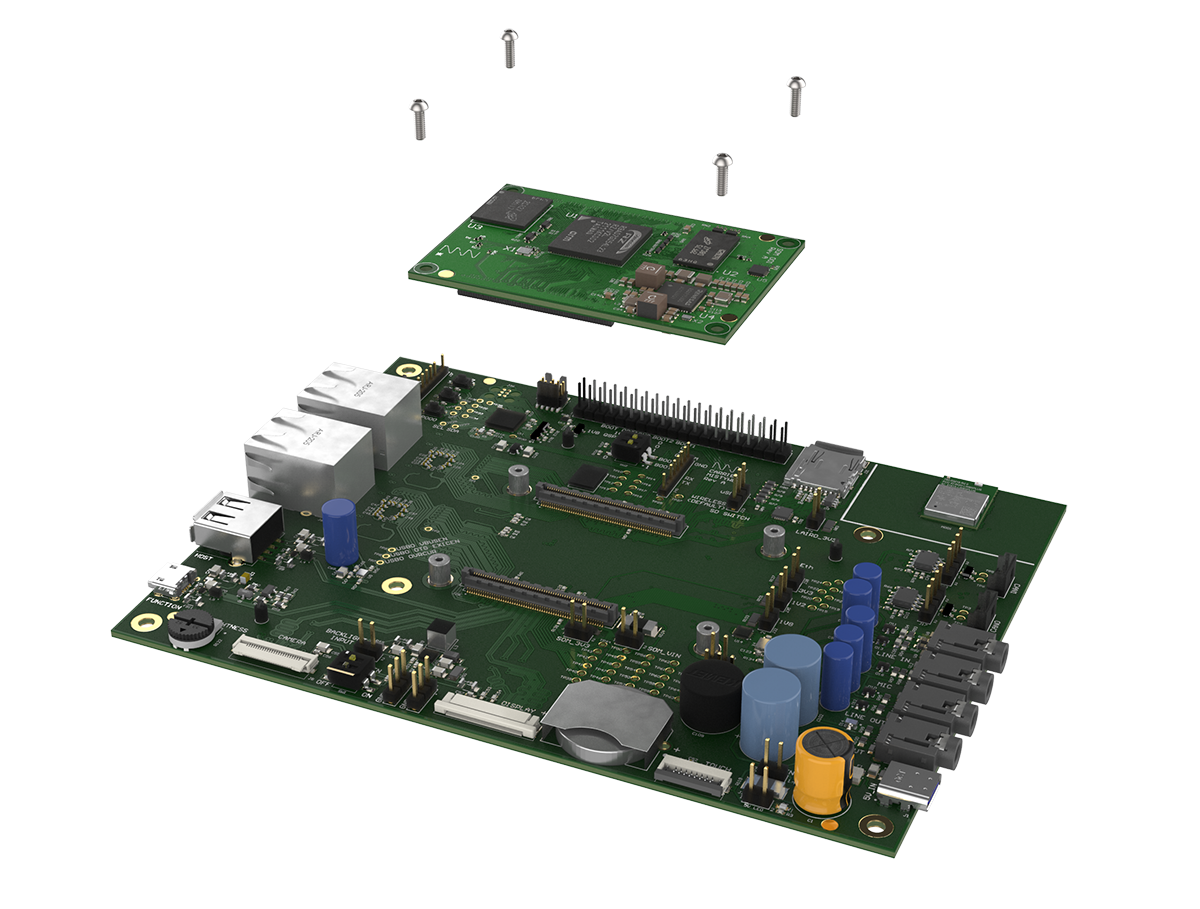

MistyCarrier
MW-V2L-G2L-I-WWB-V0
A carrier board designed with low power in mind to enable rapid implementation of both the MistySOM-G2L and MistySOM-V2L into your next product.
MistyCarrier includes sense resistors for measuring system currents and jumpers to disable interfaces, an MCU allowing ultra-low power sleep state for the system, and an industrially rated super capacitor to support the RTC without a battery.
Buying your SOMs from an experienced design services firm like MistyWest enables fast and efficient support as your product progresses from prototyping to high volume chip-down design.
Industry-best supply chain reliability from Renesas means MistySOM is available when you need it, even if another global chip shortage occurs.
